IS 1079 / IS 513 / IS 2062
100% prime certified mild steel strips with authentic Mill Test Certificates (EN 10204 3.1).

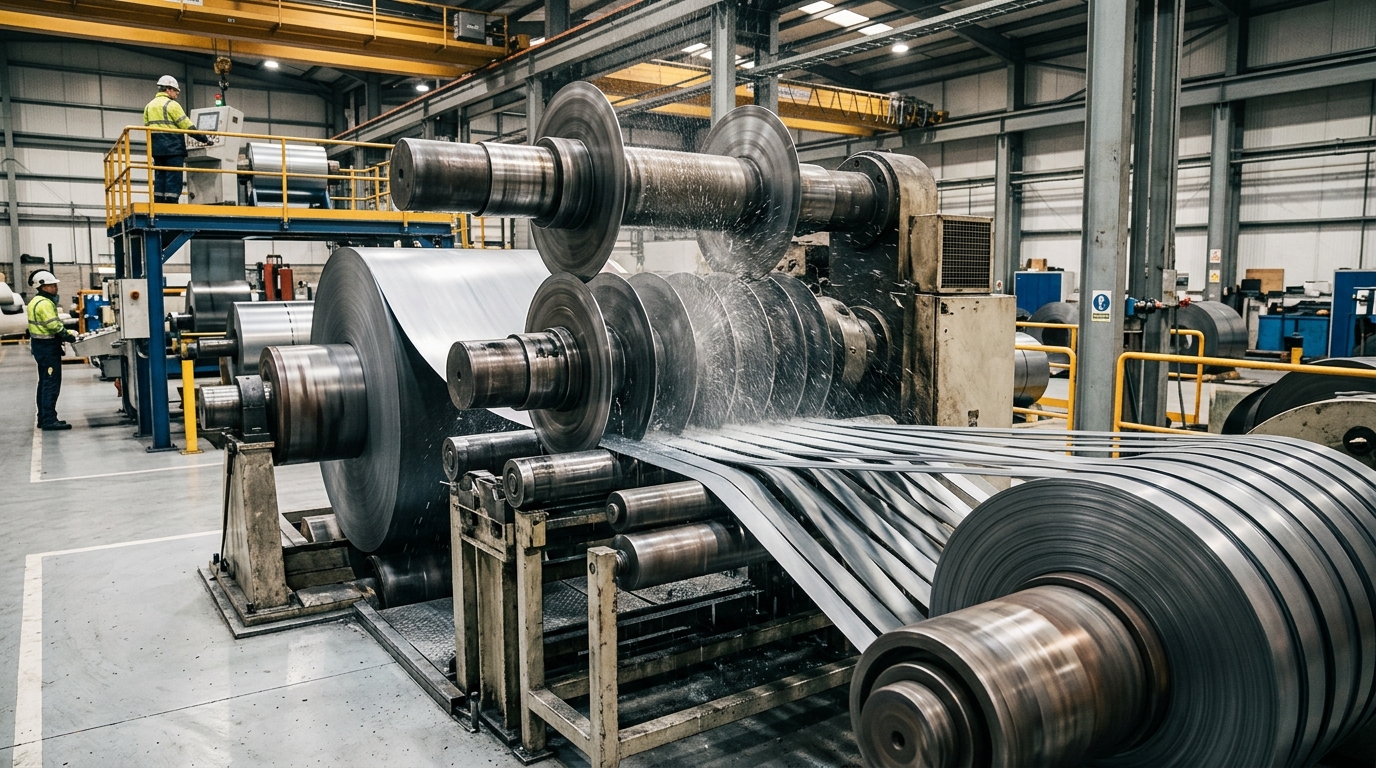

10mm – 1500mm Slitting
Rotary slitting to precise client drawings with tight width tolerance (+/-0.1mm to 0.3mm).

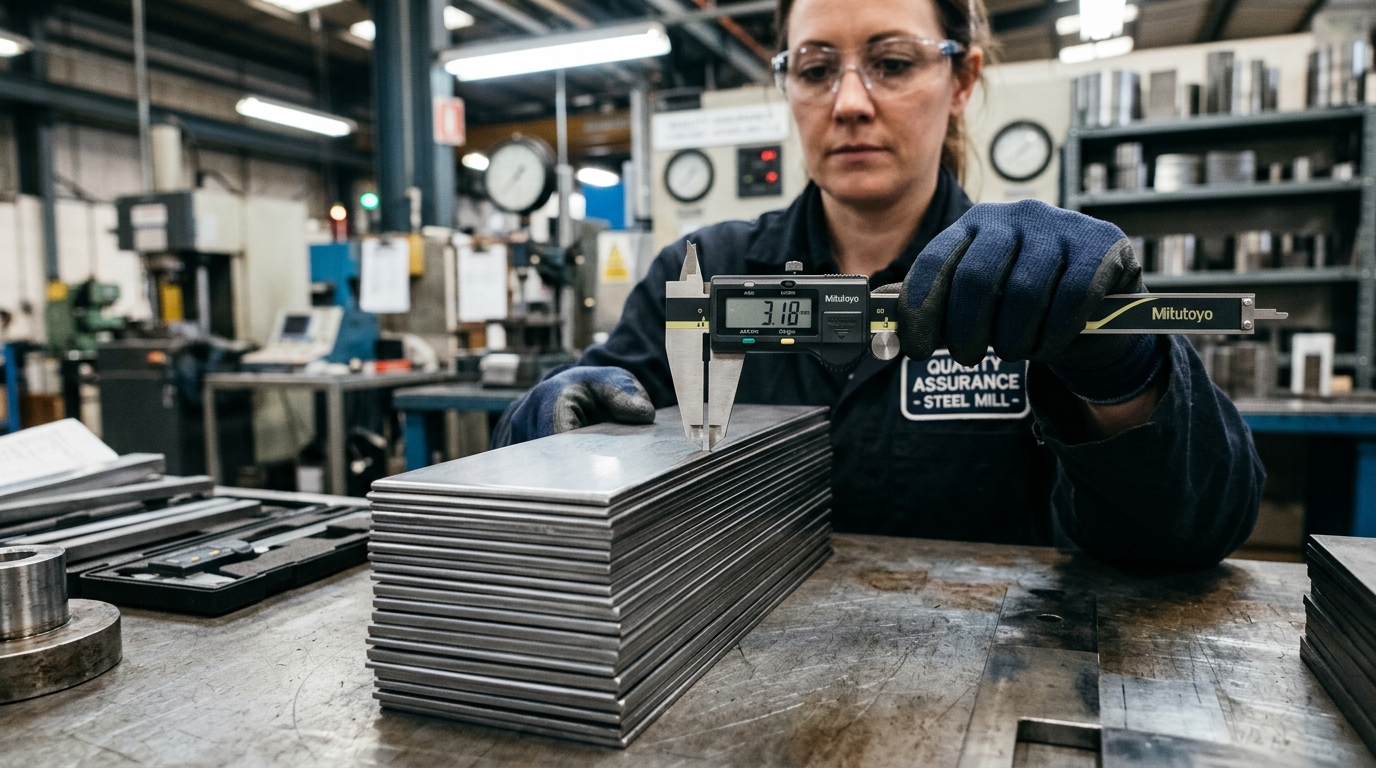

Burr-Free & Deburred Edges
Smooth safety edges ready for direct tube welding, roll-forming, and press stamping.

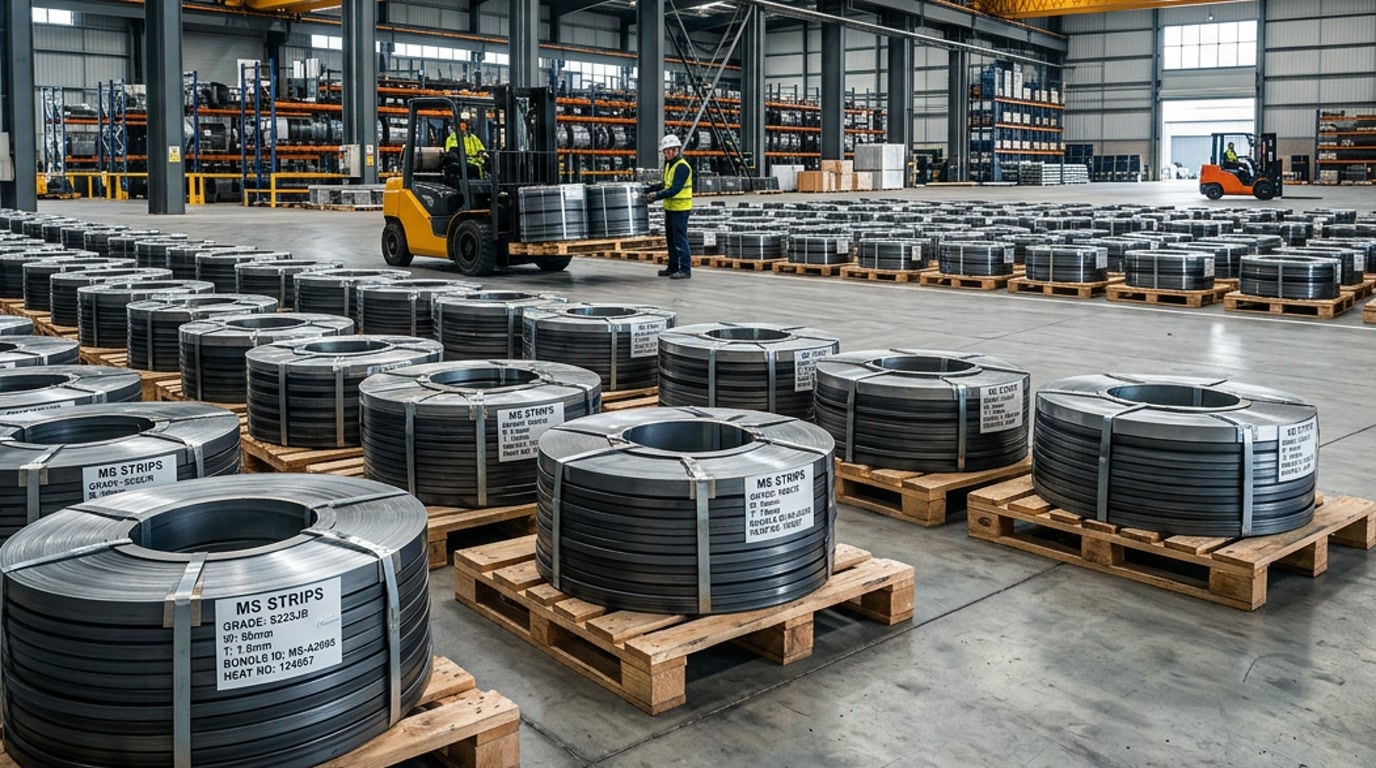

PAN-India Freight Dispatch
Prompt trailer loading from Raipur central stockyard with certified weighbridge challans.
Interactive MS Strip Weight & Length Calculator
Calculate running weight per meter, total batch weights, and surface areas using standard mild steel density (7.85 g/cm³).
MS Strips Thickness, Width & Weight Specification Table
Comprehensive dimensional weight table showing running weights per meter, width capabilities, standard grades, edge finishes, and primary industrial applications.
Mild Steel (MS) Strips Specification Table
IS 1079 / IS 513 / IS 2062| Strip Thickness | Slit Width Range | Running Wt. (@100mm W) | Weight (Kg / m²) | Standard Grade | Edge Condition | Primary Industrial Applications | Instant Quote |
|---|---|---|---|---|---|---|---|
| 0.50 mm (CR) | 10 mm – 1250 mm | 0.39 kg/m | 3.93 kg | IS 513 CR1 / CR2 / D | Deburred / Slit Edge | Automotive Pressings, Electrical Enclosures, Precision Tubes, Metal Furniture | |
| 0.60 mm (CR) | 12 mm – 1250 mm | 0.47 kg/m | 4.71 kg | IS 513 CR1 / D / DD | Deburred / Slit Edge | Auto Body Parts, Control Panels, Sheet Metal Stamping, Cable Trays, Ducting | |
| 0.80 mm (CR) | 15 mm – 1250 mm | 0.63 kg/m | 6.28 kg | IS 513 CR1 / D / DD | Deburred / Slit Edge | Control Panels, Drum Fabrication, Automotive Brackets, Shelving, Fan Blades | |
| 1.00 mm (CR/HR) | 15 mm – 1250 mm | 0.79 kg/m | 7.85 kg | IS 513 / IS 1079 HR1 | Slit / Deburred | ERW Precision Pipes, Cable Trays, Steel Doors, Exhaust Components, Stampings | |
| 1.20 mm (HR/CR) | 15 mm – 1500 mm | 0.94 kg/m | 9.42 kg | IS 1079 HR1 / IS 2062 | Slit / Mill Edge | Scaffolding Tubes, Furniture Tubing, Agricultural Equipment, Shutter Strips | |
| 1.50 mm (HR) | 19 mm – 1500 mm | 1.18 kg/m | 11.78 kg | IS 1079 HR2 / IS 2062 | Slit Edge | Structural ERW Tubes, Industrial Enclosures, Farm Machinery, Brackets | |
| 1.60 mm (HR) | 19 mm – 1500 mm | 1.26 kg/m | 12.56 kg | IS 1079 HR2 / IS 2062 E250 | Slit / Mill Edge | PEB C/Z Purlin Lip Strips, Container Panels, Auto Brackets, Purlin Stiffeners | |
| 2.00 mm (HR) | 20 mm – 1500 mm | 1.57 kg/m | 15.70 kg | IS 2062 E250 / IS 1079 | Slit / Deburred | PEB C/Z Purlins, ERW Steel Pipes, Auto Chassis, Cable Trays, Rolling Shutters | |
| 2.50 mm (HR) | 25 mm – 1500 mm | 1.96 kg/m | 19.63 kg | IS 2062 E250 / E350 | Slit Edge | Heavy Structural Tubes, Solar Mounting Structures, Fuel Tanks, Silos | |
| 3.00 mm (HR) | 25 mm – 1500 mm | 2.36 kg/m | 23.55 kg | IS 2062 E250 / E350 | Slit / Deburred | Water Pipeline Casing, Truck Cargo Beds, Railway Wagons, Flange Strips | |
| 3.15 / 3.20 mm (HR) | 25 mm – 1500 mm | 2.51 kg/m | 25.12 kg | IS 2062 E250 / IS 1079 | Slit Edge | Transmission Line Clamps, Heavy Stamping, Railway Components, Purlin Frames | |
| 3.50 mm (HR) | 25 mm – 1500 mm | 2.75 kg/m | 27.48 kg | IS 2062 E250 / E350 | Slit Edge | PEB Frame Stiffeners, Heavy Slit Strips, Machine Chassis, Bracket Arms | |
| 4.00 mm (HR) | 30 mm – 1500 mm | 3.14 kg/m | 31.40 kg | IS 2062 E250 / E350 | Slit Edge | Large Diameter ERW Pipes, Storage Tanks, Transmission Poles, Stiffener Ribs | |
| 4.50 mm (HR) | 30 mm – 1500 mm | 3.53 kg/m | 35.33 kg | IS 2062 E250 / E350 | Slit Edge | Heavy Engineering, Flanges, Pipe Couplings, Industrial Hoppers, Gusset Strips | |
| 5.00 mm (HR) | 32 mm – 1500 mm | 3.93 kg/m | 39.25 kg | IS 2062 E250 / E350 | Slit Edge | Built-up Welded Beams, Flange Strips, Earthmoving Machinery, Heavy Gussets | |
| 6.00 mm (HR) | 40 mm – 1500 mm | 4.71 kg/m | 47.10 kg | IS 2062 E250 / E350 / A36 | Slit Edge | Heavy Structural Tubing, Bridge Components, Earthing Strips (50x6, 65x6mm) | |
| 8.00 mm (HR) | 50 mm – 1500 mm | 6.28 kg/m | 62.80 kg | IS 2062 E250 / E350 | Slit Edge | Spiral Pipe Skelp, Gantry Beams, Rail Coaches, Heavy Welded Box Columns | |
| 10.00 mm (HR) | 50 mm – 1500 mm | 7.85 kg/m | 78.50 kg | IS 2062 E250 / E350 | Slit Edge | Heavy Welded Columns, Slit Flange Strips, Crane Booms, Base Plates | |
| 12.00 mm (HR) | 65 mm – 1500 mm | 9.42 kg/m | 94.20 kg | IS 2062 E250 / E350 / BQ | Slit Edge | Wind Towers, Heavy Boiler Casings, Earthmoving Excavator Frames | |
| 16.00 mm (HR) | 100 mm – 1500 mm | 12.56 kg/m | 125.60 kg | IS 2062 E250 / E350 / BQ | Heavy Slit Edge | Hydro Penstocks, Offshore Structural Tubulars, Heavy Welded Girders | |
| Earthing 25 x 3.0 mm | 25 mm Fixed | 0.59 kg/m | 23.55 kg | IS 2062 (Bare / GI) | Deburred Round Edge | Substation Earthing, Building Lightning Protection Grid, Electrical Grounding | |
| Earthing 50 x 6.0 mm | 50 mm Fixed | 2.36 kg/m | 47.10 kg | IS 2062 (Bare / GI) | Deburred Round Edge | Heavy Power Station Grounding, Transmission Tower Legs, Industrial Earth Pit | |
| Chequered 3.0 – 5.0 mm | 50 mm – 1250 mm | Varies | 26.5 – 42.2 | IS 2062 Chequered (Tear Drop) | Sheared Edge | Anti-Skid Walkways, Plant Platforms, Truck Flooring Steps, Stair Treads | |
| HRPO 2.0 – 4.5 mm | 20 mm – 1250 mm | Scale-Free | 15.7 – 35.3 | Pickled & Oiled (IS 1079) | Slit / Deburred | Automotive Chassis Brackets, Precision Laser Cutting, Fine Blanking & Stamping |
Comprehensive Engineering Guide to Mild Steel (MS) Strips
Mild Steel Strips (MS Strips) are continuous, narrow strips of low-carbon structural steel produced through precision rotary gang slitting of Hot Rolled (HR) or Cold Rolled (CR) master steel coils. Characterized by high ductility, superior tensile strength, excellent weldability, and tight dimensional tolerances, MS strips form the primary raw material for ERW pipe and tube mills, precision metal stampers, automotive ancillary units, pre-engineered buildings (PEB), and industrial fabricators across the globe.
At Msstrips.com, we are premier stockists, processors, and distributors of prime Hot Rolled (HR) MS Strips (IS 1079 / IS 2062 Grade E250 & E350), Cold Rolled (CR) MS Strips (IS 513 CR1/CR2/D/DD/EDD), and Pickled & Oiled (HRPO) Strips. Sourced directly from India's leading integrated primary mills — SAIL, TATA Steel, JSW Steel, AM/NS India, and Jindal Steel — our strips are backed by 100% genuine Mill Test Certificates (EN 10204 Type 3.1) and undergo rigorous testing for chemical composition, yield strength, and dimensional camber.
ERW Pipes & Hollow Sections
Continuous uncoiling and high-frequency induction welding into round, square, and rectangular ERW structural pipes and precision furniture tubing.
Automotive & Deep Stamping
Precision stamping of automobile chassis brackets, seat frame components, fuel tank straps, door hinges, and deep-drawn press parts.
Earthing & Lightning Protection
High-conductivity bare and hot-dip galvanized mild steel flat strips (25x3mm, 50x6mm, 65x6mm) for substation earthing grids and tower grounding.
PEB Purlins & Rolling Shutters
Continuous roll-forming of high-tensile C/Z purlin flanges, lips, stiffeners, cable trays, metal decking, and commercial rolling shutter profiles.
Chemical, Mechanical & Dimensional Standards
Our mild steel strips comply with Bureau of Indian Standards (BIS) specifications, ensuring maximum structural integrity and reliable performance during forming, bending, and robotic welding operations:
Chemical Composition (IS 2062 / IS 1079)
- Carbon (C) Max: 0.20% - 0.23%
- Manganese (Mn) Max: 1.50%
- Silicon (Si) Max: 0.45%
- Sulfur (S) Max: 0.045%
- Phosphorus (P) Max: 0.045%
- Carbon Equivalent (CE) Max: 0.42%
Mechanical Properties (IS 2062 E250 / E350)
- Yield Strength (YS): Min 250 - 350 MPa
- Tensile Strength (UTS): 410 - 540 MPa
- Elongation (A5) Min: 23% (Gauge 5.65√So)
- Bend Test (180°): Internal Rad 1.5t to 2.0t
- Weldability: Excellent (MIG, TIG, ERW, SMAW)
- Surface Quality: Scale-free / Pickled / As Rolled
Slitting Tolerances & Edge Finishes
- Width Tolerance (Slit): ±0.10 mm to ±0.25 mm
- Thickness Tolerance: As per IS 1730 / IS 1079
- Camber Tolerance Max: < 2.0 mm per 1000 mm
- Burr Height Max: < 5% of Strip Thickness
- Available Edges: Slit / Deburred / Round Edge
- Packaging Format: Eye-to-Sky / Eye-to-Wall
Mild Steel Strip Weight Calculation Formula
The theoretical weight of any mild steel strip or flat is calculated using the standard steel density constant of 7.85 g/cm³ (7,850 kg/m³).
Total Batch Weight (kg) = Running Wt (kg/m) × Length (m) × Quantity
Practical Calculation Example: To calculate the weight of an MS strip bundle with thickness = 3.0 mm, width = 50 mm, strip length = 6.0 meters, and quantity = 100 strips:
Running Weight = 3.0 × 50 × 0.00785 = 1.1775 kg/m
Weight per 6m Strip = 1.1775 × 6 = 7.065 kg
Total Weight = 7.065 × 100 = 706.5 kg (0.71 Metric Tons)
All dispatches from our Raipur processing yard are weighed on certified electronic weighbridges to ensure 100% transparent billing matching physical deliveries.
Frequently Asked Questions
Key technical, processing, edge conditioning, testing, and commercial answers regarding Mild Steel (MS) Strips.
Hot Rolled (HR) MS Strips are slitted from steel coils rolled above recrystallization temperature (>1,000°C). They exhibit superior ductility, high tensile toughness, and a dark mill-scale surface, making them the standard choice for ERW structural tubes, PEB purlins, automotive chassis components, and heavy engineering. Cold Rolled (CR) MS Strips are processed from pickled HR coils reduced at room temperature, providing ultra-tight gauge tolerances, a mirror-smooth scale-free finish, and exceptional deep-drawing properties ideal for automotive body pressings, electrical control panels, and precision furniture.
Our computerized rotary slitting lines can slit Mild Steel master coils from 0.50 mm thin CR sheets up to 16.00 mm heavy HR plate gauges. Widths range from narrow strips of 10 mm up to 1500 mm wide skelp, maintaining tight width tolerances of ±0.1 mm to ±0.25 mm.
A Slit Edge is sheared by rotary slitter knives with minimal burr, suitable for general tube forming and welding. A Deburred / Round Edge is mechanically processed through deburring rolls to completely eliminate sharp cut edges, creating a safe, rounded contour. Deburred strips are highly recommended for earthing strips, automotive safety parts, rolling shutters, and manual assembly operations.
We process and stock prime Mild Steel Strips derived exclusively from India's tier-1 integrated primary mills: SAIL (Steel Authority of India Limited), TATA Steel, JSW Steel, AM/NS India (ArcelorMittal Nippon Steel), and Jindal Steel.
Yes, 100% of our prime material dispatches include authentic Mill Test Certificates conforming to EN 10204 Type 3.1. These test reports state heat numbers, chemical composition (%C, %Mn, %Si, %S, %P) and mechanical properties (yield strength, ultimate tensile strength, elongation %).
You can connect directly with our central sales team at +91 9009272007 / 0771-4007433, submit an online quotation inquiry through the quote button on this website, or email your bill of materials to jmdtradingco.99@gmail.com for an immediate factory-direct rate quote with freight estimates.
